When I was working on my first major home renovation, everything seemed to be going smoothly, until we got to the roof. The builders realized midway that some beams didn’t align with the structure, and the roof design I had envisioned couldn’t be executed as planned.
The delays, unexpected costs, and frustration were overwhelming. Looking back, the issue wasn’t with the builders or the materials, it was the lack of a detailed roof framing plan. A roof framing plan might seem like just another technical document, but it’s far more than that.
It’s the roadmap that guides every step of roof construction, providing everything fits together properly. This plan details where the rafters and trusses should be placed and makes sure that the load is properly distributed, minimizing any unforeseen problems.
In this article, we’ll be learning about roof framing plans, their purpose, main components, and their benefits to any construction project. Let’s begin.

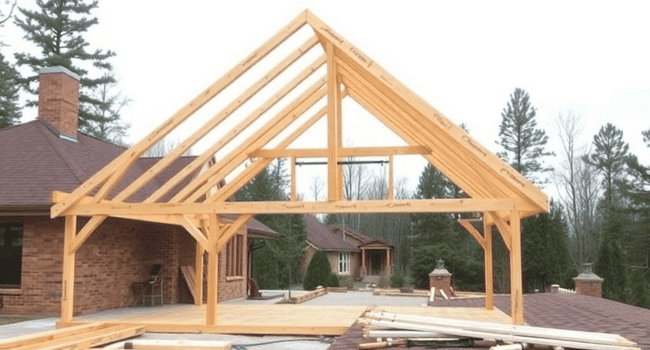

What Are Roof Framing Plans?
A roof framing plan is a drawing used by architects and builders to show how a roof is put together. It shows the arrangement of the beams, rafters, trusses, and other components that support the roof. These plans are crucial for constructing a roof that is strong, stable, and able to handle different loads, like rain or snow.
The plan also includes information on the spacing between the rafters, the size and type of materials to be used, and any special details needed for things like chimneys or skylights. It helps workers understand where to place supports and how to align everything to make sure the roof fits correctly on the structure.
For example, the roof framing plan will show if the rafters are going to be spaced 16 inches apart or 24 inches apart. It might also indicate where a special support beam is needed to handle extra weight. In addition to the framing elements, the plan can include notes about the type of roofing material to be used and how it should be installed.
Having a roof framing plan is important for making sure the roof is safe and durable, and it helps the builder follow the right steps in the right order during construction. It also serves as a guide for future repairs or renovations since it shows the original design and materials used.

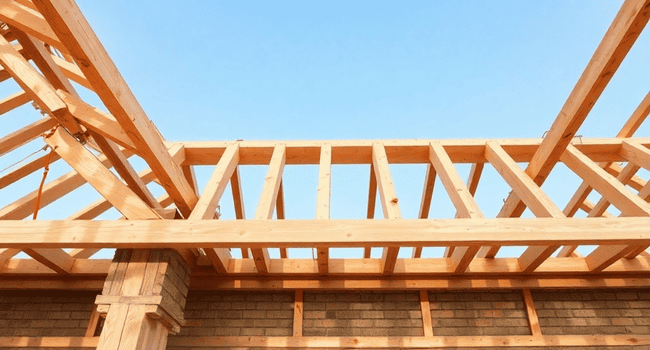

Components Of Roof Framing Plans
A roof framing plan includes several key components that work together to form the overall structure and support system of the roof. Each part plays a specific role in making the roof strong, stable, and properly aligned with the rest of the building. Here are the main components of a roof framing plan:
Rafters
Rafters are the sloping beams that form the basic framework of the roof. They run from the ridge (top) of the roof down to the eaves (edges). Rafters support the roof covering and distribute the weight of the roof evenly to the walls of the building.
- Spacing: Rafters are spaced at regular intervals, typically 16 or 24 inches apart, depending on the design.
- Size and Material: The size and material of the rafters are shown on the framing plan to make sure they are strong enough to support the roof load.
Trusses
Trusses are pre-engineered, triangular support structures made of wood or metal that are used in place of individual rafters. They are designed to distribute the roof load evenly and can span larger distances without needing additional support.
- Location: The roof framing plan will show where trusses are placed, which can often be spaced farther apart than rafters.
- Design: The plan may also include the specific design or type of trusses, such as gable trusses, hip trusses, or attic trusses.
Ridge Beam
The ridge beam runs along the peak of the roof where the two slopes meet. It is a horizontal beam that supports the upper ends of the rafters. The ridge beam can be made of wood, steel, or other materials, depending on the size and weight of the roof.
- Purpose: It helps prevent the roof from collapsing inward by supporting the weight of the rafters and the roof covering.
Purlins
Purlins are horizontal beams that run perpendicular to the rafters, providing additional support and stability. They help distribute the weight of the roof covering (such as tiles or shingles) across the rafters.
- Placement: Purlins are often placed between the rafters, especially in larger roof designs where extra support is needed.
Collar Ties
Collar ties are horizontal beams that connect two opposing rafters near the ridge. Their main purpose is to prevent the rafters from spreading apart due to the weight of the roof.
- Function: They act as a stabilizing force to keep the roof’s shape intact under stress, like heavy snow or wind loads.
Hip Rafters
In a roof with a hip design (where the sides of the roof slope inward), hip rafters are the sloping beams that run from the ridge down to the eaves at the corners of the roof. They form the main support for the roof’s sloping sides.
- Location: The framing plan shows the placement of hip rafters, which form part of the roof’s perimeter.
Valley Rafters
Valley rafters are used where two roof slopes meet at an internal angle. These rafters create a valley where water can run off.
- Design: Valley rafters are typically placed at the intersection of two sloping sections of the roof, where the two meet at an angle.
Eave Details
The eaves are the edges of the roof that overhang the walls. Roof framing plans show how the rafters or trusses extend past the walls to create the eaves, and whether the eaves will have a fascia board, soffit, or other details.
- Fascia and Soffit: The fascia is the vertical board that runs along the edge of the eaves, while the soffit is the underside of the eaves. The plan will show how these components connect to the roof framing.
Ceiling Joists
Ceiling joists are horizontal beams that are installed inside the building, just below the roof structure. They tie the rafters together and help form the ceiling of the upper floor or attic.
- Connection to Rafters: The framing plan shows how ceiling joists connect to the rafters and are spaced apart to provide support for the ceiling.
Support Beams (Load-Bearing Walls)
The framing plan will indicate where support beams or load-bearing walls are located. These structures are crucial because they carry the weight from the roof to the foundation of the building.
- Positioning: The framing plan shows the alignment of these beams to support the rafters or trusses and maintain the structural integrity of the roof.
Roof Pitch and Slope
The pitch of the roof refers to how steep the roof slopes are. The roof framing plan will indicate the slope or pitch, usually expressed as a ratio (e.g., 6:12, which means the roof rises 6 inches for every 12 inches horizontally).
- Indication: The plan will show the angle of the roof slope, helping to guide the correct placement of rafters, trusses, and other elements.
Roof Openings (Chimneys, Skylights, Vents)
If the roof has features like chimneys, skylights, or vents, the roof framing plan will indicate where these openings should be placed.
- Details: The plan will show the exact size and location of the opening, and whether additional framing is needed around these features for support.
Materials and Notes
The plan will often include specific materials to be used, such as the type of wood for rafters or the kind of roofing material. It may also contain notes to clarify any special requirements for construction or design.
These components work together to form a roof that is stable and safe, capable of handling the loads placed on it and providing protection for the building. The roof framing plan serves as a detailed guide for builders. It shows how all the parts of the roof are connected and what materials and techniques to use.
Benefits Of Roof Framing Plans
Roof framing plans offer several important benefits in the construction process:
- Clear Guidance for Builders: Roof framing plans provide a detailed visual guide that shows how each part of the roof should be built. This helps builders follow the correct steps and use the right materials.
- Accurate Measurements: These plans include specific measurements for rafters, trusses, beams, and other components, helping builders avoid mistakes and ensuring the roof fits perfectly.
- Load Distribution: Roof framing plans help distribute the weight of the roof evenly across the building. This reduces the risk of structural problems, especially during heavy weather conditions like snow or rain.
- Supports Safety: By showing how the roof should be framed, the plan reduces the chance of errors that could lead to roof instability. Proper framing keeps the building safe and secure.
- Easier Inspections and Repairs: Roof framing plans make it easier for inspectors and contractors to assess the structure of the roof. They also help with future repairs or renovations by showing the original design.
- Cost Efficiency: With clear instructions, framing plans help avoid costly mistakes or delays during construction, making the process more efficient and budget-friendly.
Our Final Thoughts
In short, roof framing plans are essential for building a safe and strong roof. They clearly show how the roof should be built, including the placement and materials for rafters, trusses, and beams.
With accurate measurements and proper weight distribution, these plans help make sure the roof is stable and can handle different weather conditions. Roof framing plans also help make the building process faster and prevent expensive mistakes.
These plans are also useful for future inspections or repairs. They act as a reference for understanding the roof’s original structure, which makes it easier to check or fix the roof later on.
Overall, roof framing plans are important for making the roof safe, stable, and built the right way. Whether you’re building a new roof or fixing an old one, having a good roof framing plan is important for a roof that lasts and protects your home.
