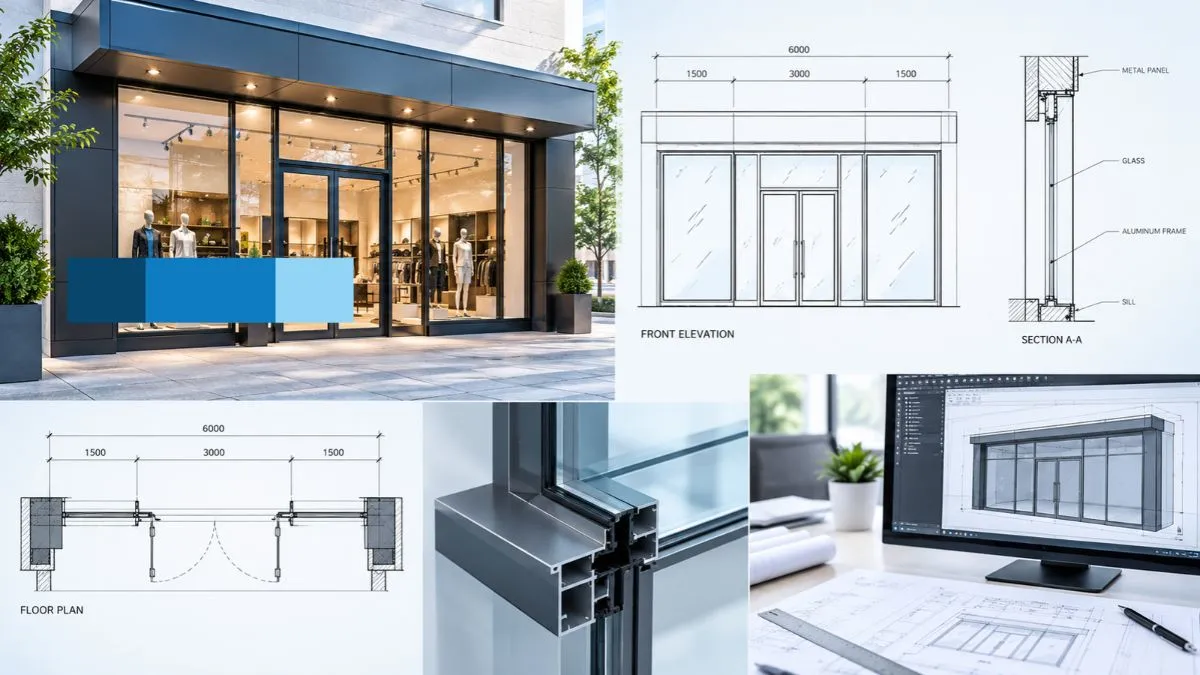

Whether it is oversized glass panels, aluminum frames clashing with structural openings, or misaligned hardware and mullion centerlines, these are just a few of the many consequences of incomplete storefront shop drawings. Shop drawings that are uncoordinated and unverified against the confirmed as-built conditions in the field.
It is rarely the case that the drawings lack the input of an expert. More often than not, it is the absence of a disciplined process to address coordination between the different elements of the building envelope, glass, aluminum, door hardware, and rough opening dimensions. Rework associated with glazing and storefront installations is among the most costly and frequent sources of claims on a construction project.
Accurate glass and aluminum shop drawings give fabricators, installers, and general contractors the same verified baseline. This article goes deep inside the critical coordination points and covers the core elements of the process prior to fabrication and illustrates how a planned drawings package resolves deficiencies before they lead to conflicts in the field.
Why Storefront Coordination Problems Start Before Fabrication
Each confirmed dimension in a drawing is a conflict that does not occur in the field. Risk reduction before fabrication is not excess paperwork.
There are four inputs that must be combined in commercial storefront drawings. The architectural design, project specifications, as-built conditions, and the fabricator’s system. If any of these inputs remain unresolved, drawings become unreliable, and allowable fabrication conflicts proliferate.
Storefront fabrication drawings that reflect verified system profiles, dimensions, and interface conditions substantially lessen these risks. They also provide a unified, up-front design reference for the entire project team.
Before fabrication, the following inputs must be reconciled to achieve coordination:
- Relevant architectural drawings and specification sections (especially Division 08).
- Verified rough opening dimensions from structural or concrete drawings.
- System data, profile dimensions, and glazing pocket details from the manufacturer.
- Hardware specifications and supplier submittals.
- Conditions and details related to flashing and waterproofing.
Now that we have an understanding of the rationale behind early coordination, let’s look at the most dimensionally sensitive part of a storefront system, i. e., glass sizing and glazing details.
1. Glass Coordination: Sizes, Types and Glazing Details
Glass coordination is the most expensive area of fabrication errors. Misalignment of just a couple of millimeters between glass and aluminum framing results in structural and watertight problems and unit rejection.
Verify Glass Dimensions Against the Frame System
Storefront glass dimensions shown on an architectural drawing do not mean it will be the case in the storefront framing. Architectural drawings show design intent and do not consider frame bite or system tolerances.
The storefront glazing schedule must show all glass panels with specifications such as type of glass, coating, edge treatment, width, and height. For the fabricator, this is the production document. One small error in this schedule could result in a costly fabrication mistake.
Check Glass size against Frame Opening:
- Confirm glass width and height against as-built or verified frame dimensions; calculate glass size from frame opening, subtracting edge clearance and setting block position.
- Verify that panel sizes do not exceed the manufacturer’s maximum lite size for the system.
- Check that glass thickness is compatible with the glazing pocket depth.
- Confirm the glazing schedule matches the architectural glass specification section.
Coordination Glass Specification and Performance Requirements
The glazing schedule must be checked against the architectural glass specification to verify that the specified glass is compatible with the performance requirements and glazing systems. Edge construction of a triple-glazed unit will be different from a monolithic lite. The glazing details for storefront systems must reflect the requirements of the specified system and not a general system. Discrepancies between the details of the specified system and the glazing details are a frequent source of RFI’s and submittal issues.
Check Setting Blocks, Gaskets, and Glazing Pockets
Glass behavior must be taken into account with respect to thermal movement and load. Glazing shop drawings must show setting blocks, gaskets and glazing pockets. It is not left to field interpretation or fabricator discretion.
| Component of Glazing | Risk of Coordination | What Goes Wrong |
| Setting Block Position | Incorrect Load Transfer to Frame | Breakage of Glass due to Wind Load |
| Gasket Selection | Incompatible with Type of Glass Edge | Water Infiltration at Edge |
| Glazing Pocket Dept | Inadequate Edge Bite | Panel Dislodgement |
| Edge Clerance | Thermal Expansion not Accounted For | Cracking of Glass due to Extremes of Temperature |
Now that glass coordination is complete, let’s move to the aluminum framing system, the structural backbone that all other elements depend on.
2. Pay Attention to Field Dimensions, Rough Openings, and Tolerances
Conciliate Between Design Dimensions and Actual Site Conditions
Establish the comparison between field verified rough openings and its width and height. Compare the slab edges, finished floor levels, columns, masonry, embeds, and adjacent cladding or finishes. To get the idea of what was intended, dimensions can be used just like we use field dimensions to tell what was built. However, the two do not match exactly. A consistent workflow, like the one behind our shop drawing services, treats field verification as a required input rather than an afterthought.
Strategy for Adjustment and Document Tolerance
Find out the packing zones, shim and clearances for installations. With this search for allowable adjustments ranges, and the team who are responsible for resolving out-of-tolerance conditions. Fabrication tolerances should come from the project specifications and the system manufacturer, not from a rule of thumb. If the documents are silent, that silence is itself an item to raise.
In the case of discrepancy, try to resolve it before fabrication starts. Silently absorbing a dimension difference into the frame layout hides the problem until the frame arrives and does not fit. Keep a detailed record of when each measurement was taken. The dated dimension with a named location will help a reviewer than a single number sheet.
3. Balance Mullions, Transoms, Anchors, and Structural Supports
Align the building structure with the Storefront grid
It is important to pay attention to the grid lines against structural grids, slab edges, columns, beams, and the supporting substrates. Teams that use BIM modeling services, often find these clashes earlier, though the same checks apply to 2D drawings.
Make connection details reviewable
To showcase the specified anchor or bracket type and location a good storefront anchor and substrate coordination is needed. With this. any embed or backing requirements, edge distances where the approved design provides them, and the installation access needed to place the fasteners. A reviewer should be able to see what the frame attaches to without hunting through other sheets.
Questions Related to Flag movement and Load
Note where deflection, thermal movement, building movement, or system limits need confirmation by the responsible engineer or manufacturer. Drafting notes are not a substitute for structural design. The role of storefront drafting services is to make the question visible and routed to the right person, not to answer it. The same goes for any other structural supports the storefront depends on.
Access matters as much as location. An anchor that is correctly placed but cannot be reached once adjacent finishes are in place becomes a field modification, so note the sequence and any temporary conditions that affect installation.
4. Resolve Door Openings, Hardware, and Accessibility
Coordinate door leaf, frame, and clear opening
Cross check door handling, swing, active and inactive leaves, sidelites, transoms, thresholds, clearances, and finished-floor conditions against the door schedule and applicable project requirements. This is where storefront door opening dimensions and hardware coordination most often breaks down, because the opening in the architectural set and the door actually specified can differ, coordinating them is closely tied to the broader documentation work covered by architectural drafting services.
Match hardware to the actual storefront configuration
Coordinate hinges or pivots, closers, locks, exit devices, pull access-control components, power and low-voltage needs for automatic operators, and finish requirements as applicable. A door hardware schedule written for a different leaf configuration creates reorders and delays that surface late, at installation.
Check trade dependencies
Identify the interfaces with electrical and security trades, flooring, access control, and adjacent construction. If a conflict exists, flag it for confirmation instead of assuming who is responsible or inventing code criteria. Accessibility and egress requirements belong to the responsible design professionals and the authority having jurisdiction.
Automatic operators deserve particular attention. They add power, controls, and sometimes sensor locations to a storefront that otherwise looks passive, and those needs should appear on the drawings early enough for the electrical trade to respond.
5. Detail Perimeter Seals, Flashing, Drainage, and Adjacent Finishes
Check head, jambs and still conditions
Confirm how the frame interfaces with the rough opening, waterproofing, flashing, backer rod, perimeter sealant, and adjacent wall and finish assemblies. Storefront head sill and jamb details are where most water and air problems originate, so each should be drawn at the actual condition, not copied from a typical.
Analyse the Drainage Route
Check system-specific weeps, end dams, sill conditions, and drainage outlets against the manufacturer’s details. Make sure adjacent construction, such as a finish, curb, or sealant bead, does not block the path the system relies on to shed water.
Match Material sequencing and compatibility
Verify sealant and gasket products, and their compatibility documentation, with the responsible parties. Coordinate sealant joints, finish transitions, and the installation sequence, and avoid prescribing generic products without project data. Finish and material relationships are also easier to discuss with owners and stakeholders when they are visualized. Real Estate Rendering can help communicate design intent, though a rendering does not confirm technical fit.
6. Formulate a Comprehensive and Coordinated Storefront Shop Drawing Package
Add the Timeline for views and Reviews
A complete package of storefront fabrication drawings and storefront installation drawings typically includes plans or setting out information where required, elevations, head, sill, jamb and intermediate sections, anchor and connection details, a glass schedule, frame and member identifiers, a door and hardware schedule, finish and material notes, and the interface details relevant to the project. Assembling these consistently is what Storefront Shop Drawings are meant to deliver.
Consistent Cross-Reference Information
Use consistent opening marks, glass tags, member references, detail bubbles, sheet references, and revision tracking so a reviewer can follow one opening across every drawing and schedule. If a reader has to guess which detail applies to which opening, the submittal review will generate comments that better referencing would have avoided. Revision tracking deserves the same discipline. A cloud and a revision note on each affected sheet lets the reviewer see what moved, and a short change summary with each issue saves a full re-read of the package.
Reconcile the package before submission
Check the package against architectural drawings, specification, addenda, approved manufacturer data, field dimensions, and the agreed scope. List the unresolved assumptions and the design-tea, decisions still required, so they are visible instead of buried.
7. Use a Pre-Submittal Coordination Checklist
A short checklist catches what a tired reviewer misses. Phrase each item as a question, because the goal is certification rather than a blanket compliance claim. This is the question-based approach we apply across our shop drawing services. Use it as a storefront shop drawing review checklist, and treat it as the answer to what storefront shop drawings include at the point of review.
- Do the drawn opening match field-verified dimensions and the architectural set?
- Are all glass identifiers traceable to the approved glass make-up schedule, and do they fit the glazing pocket?
- Is every anchor location tied to a verified substrate and flagged for engineering where required?
- Does the hardware schedule match the door handling, leaf configuration, and operator needs?
- Are head, jamb, and sill details drawn at actual conditions, with drainage paths unobstructed?
- Do opening marks, tags, and sheet references agree everywhere they appear?
- Is every unresolved assumption logged as a RFI?
Anything that requires design, engineering, product approval, or code interpretation should be routed to the responsible professional rather than settled on the drawing.
When to Request Clarification Before Releasing Fabrication
Some conditions justify stopping. Ask for clarification before release when you see mismatched opening dimensions, missing system or product data, conflicting glass specifications, unresolved anchor or substrate conditions, unclear hardware or operator interfaces, undocumented perimeter conditions, or revisions that affect components already released.
Track these in an issue log with the drawing reference, the condition, the question, the responsible party, the required response date, and the disposition, pair it with revision control. Record what changed, which sheets are schedules are affected, and whether previously coordinated components need to be rechecked.
How McLine Studios Can Support Storefront Drawing Coordination
McLine Studios works as a drafting support partner for coordinated storefront documentation, including elevations, sections, frame and glazing schedules, fabrication and installation details, and drawing revisions within the agreed scope. We work from your approved system information, project documents, and field measurements. We do not replace the architect, engineer, manufacturer, or authority having jurisdiction.
If you are a glazing contractor, fabricator, or project team preparing a submittal, send us your project scope, available drawings, system information, and deadlines, and we will review them with you. Start with our Storefront Shop Drawings service page to see how we approach it.
Conclusion: Resolve Interfaces Before the Storefront Reaches the Field
From glass and frame, opening dimensions, structure and anchors, door and hardware to and perimeter and weathering conditions, a correct storefront shop drawings resolve these interfaces before the fabrication begins. It is not suitable to begin fabrication until you have run through the checklist and all the questions get answered. If you want a reliable partner for your next project. Contact McLine Studios to discuss storefront shop drawing support.
